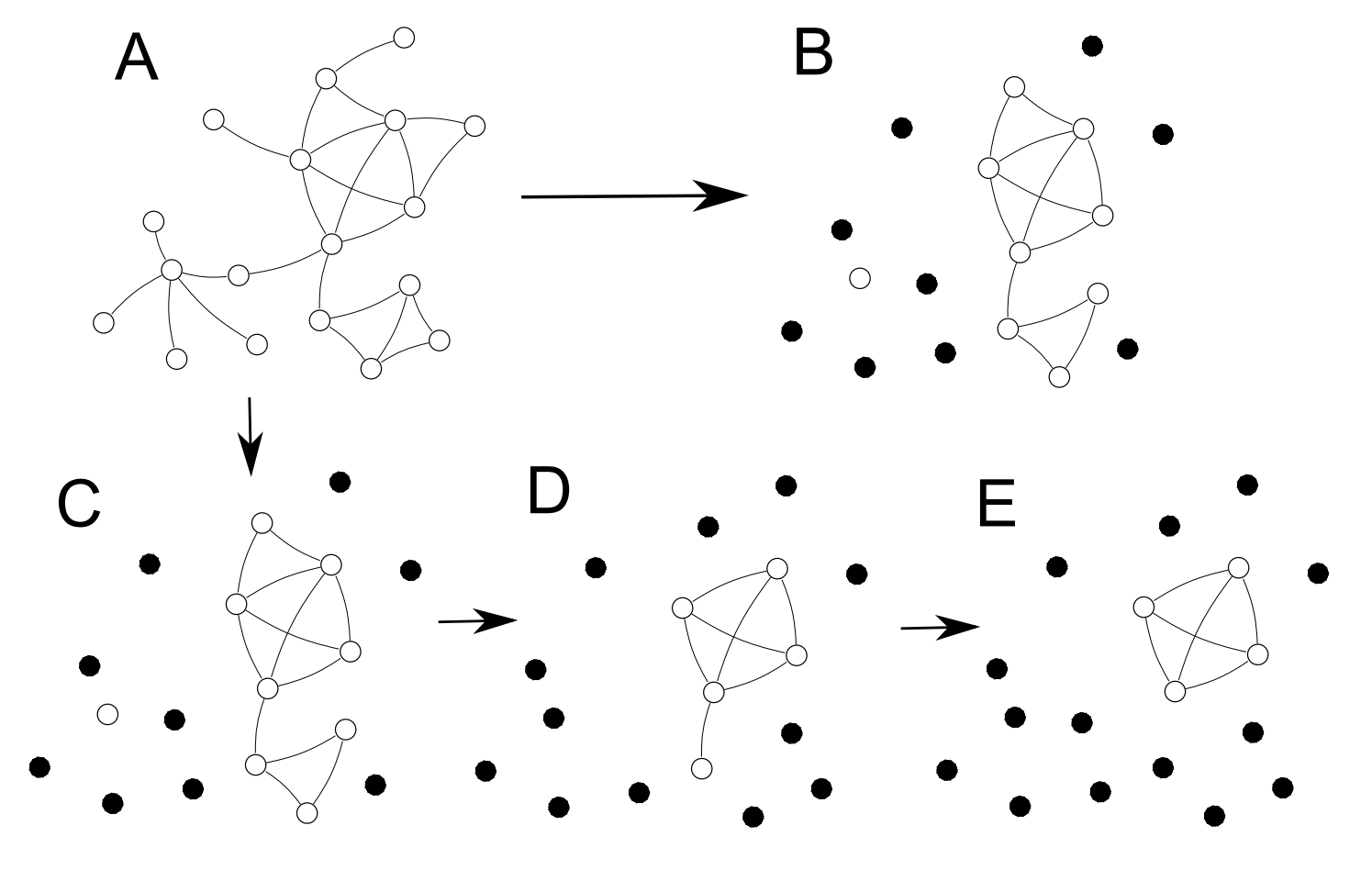

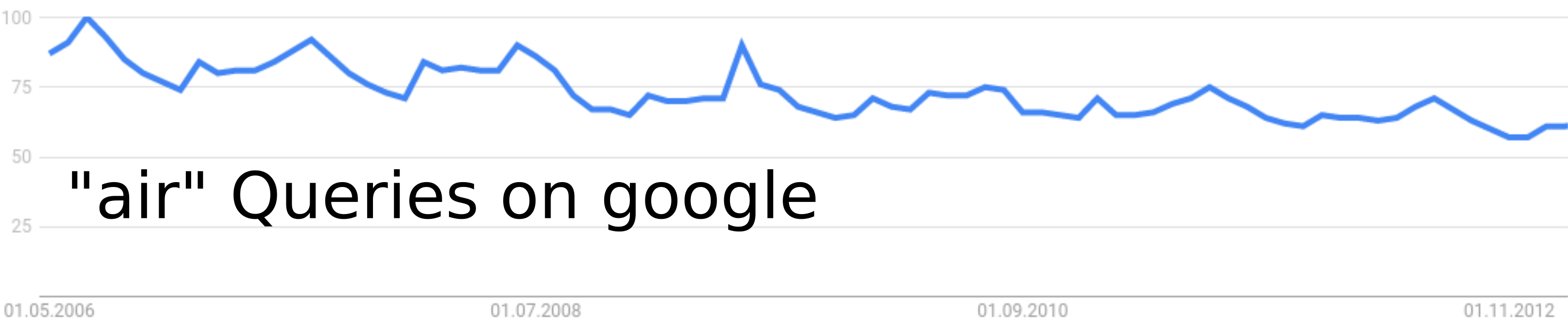

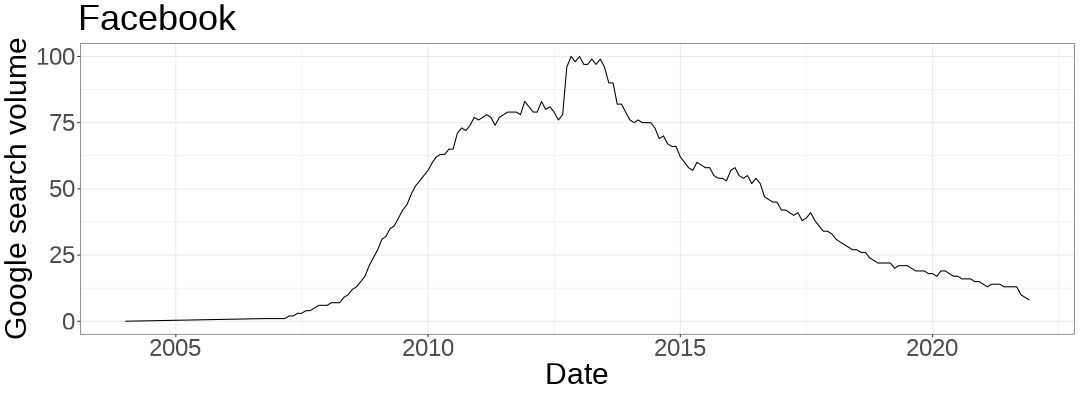

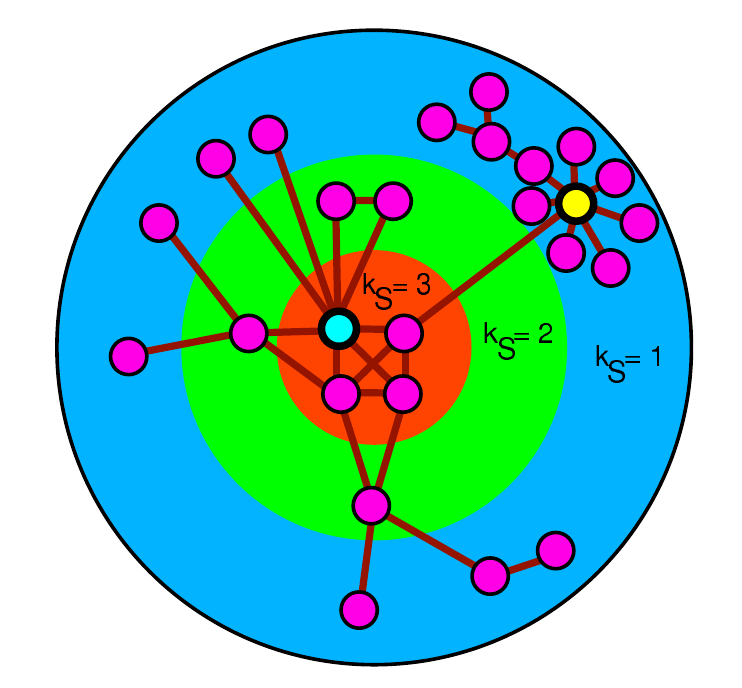

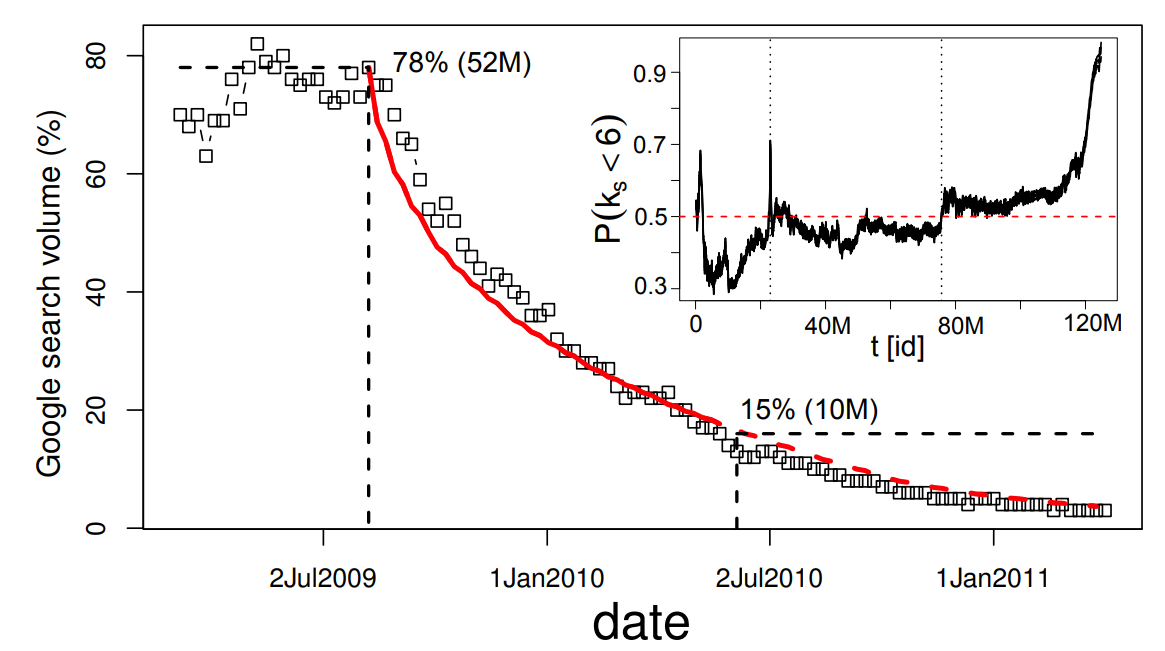

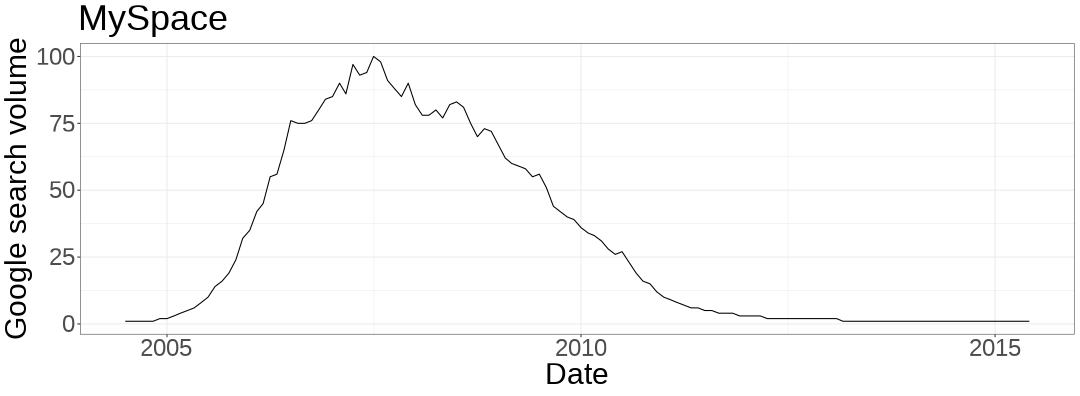

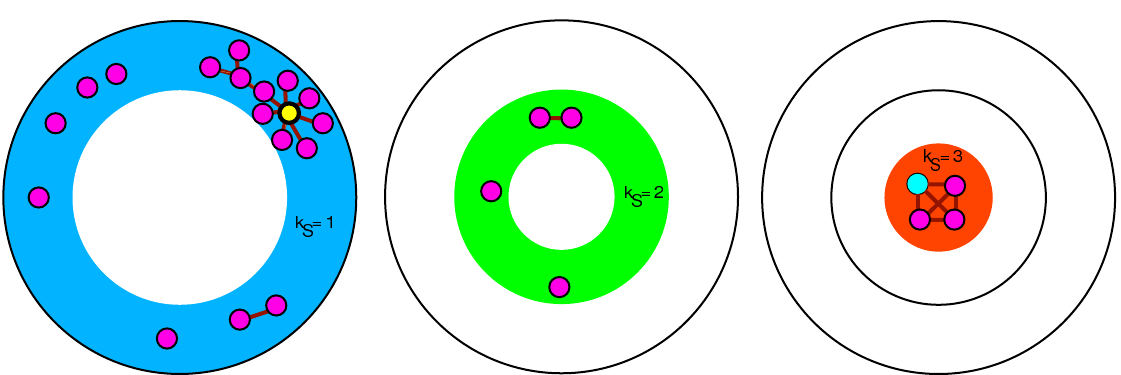

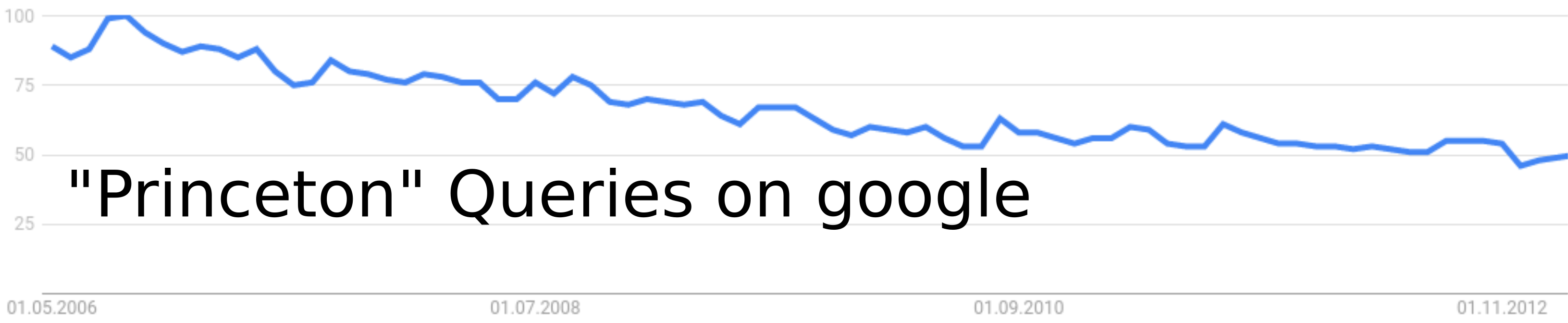

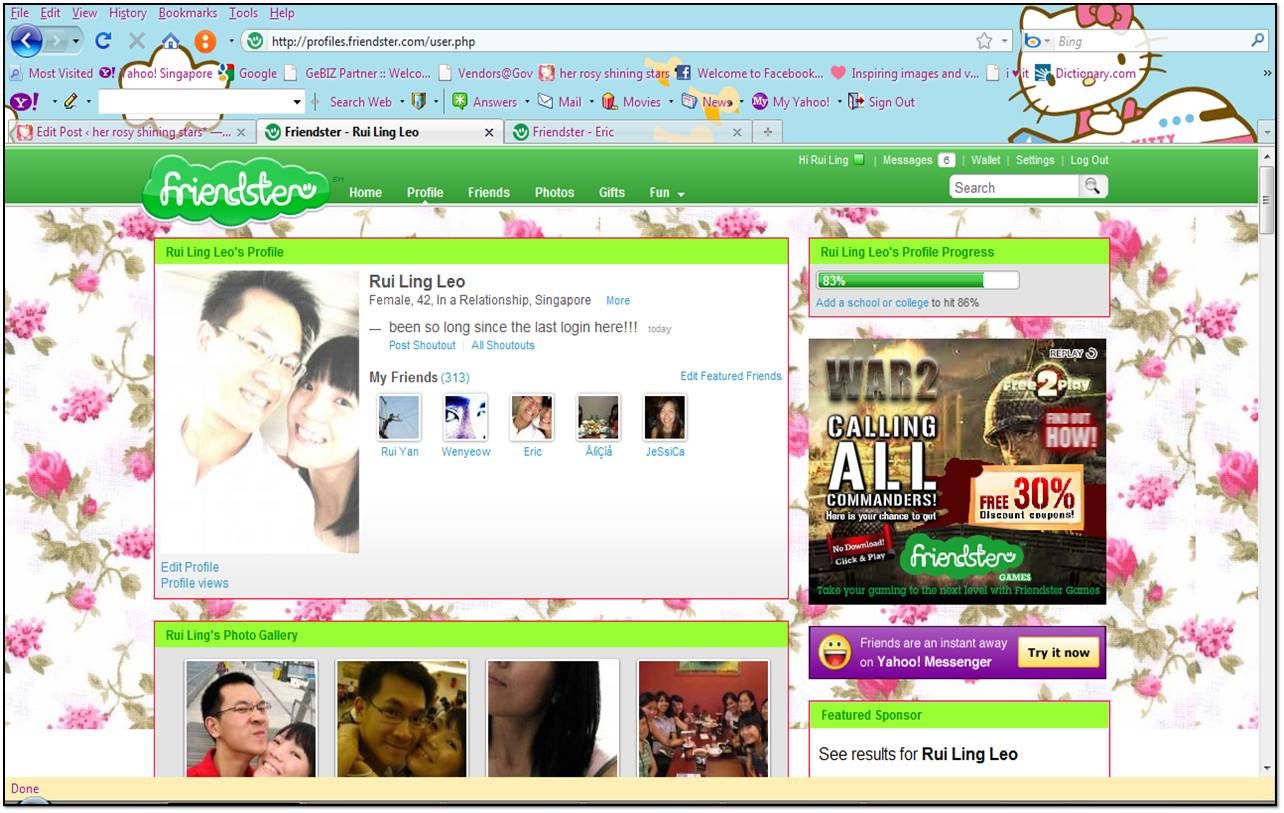

class: center, middle, inverse, title-slide .title[ # Centrality measures in online social networks ] .author[ ### David Garcia, University of Konstanz ] .date[ ### Social Media Data Analysis ] --- layout: true <div class="my-footer"><span>David Garcia - Social Media Data Analysis</span></div> --- # Overview ## 1. Centrality and importance in social networks ## 2. The death of social networks ## 3. Coreness centrality and social resilience --- # The concept of centrality Social network analysis can be used to measure the importance of a person as a function of the social structure of a community or organization. In social networks, **centrality** measures this kind of structural importance of the node of a person. There are various centrality measures that stem from different kinds of structural importance. Today you will learn about four centrality measures: 1. Degree centrality 2. Betweenness centrality 3. Closeness centrality 4. Coreness centrality --- # Degree centrality <div style="float:right"> <img src="networkDirected.png" alt="Network example." width=400px/> </div> A node's **degree centrality** measures the number of links connected to it. In directed networks: - **in-degree** `\(d_{in}(i)\)` that is the number of edges ending in `\(i\)`, i.e. `\((j,i)\)` - **out-degree** `\(d_{out}(i)\)` that is the number of edges leaving from `\(i\)`, i.e. `\((i,j)\)` `\(d_{in}(c) = 1\)` and `\(d_{out}(c) = 2\)` If importance on Twitter is the number of followers of an account, in-degree centrality is a way to measure it. --- # Betweenness Centrality <div style="float:right"> <img src="undirNetworkBtw.png" alt="Network betweenness example." width=400px/> </div> Sometimes the importance of a person is quantified as the number of shortest paths between two other people that pass through this person. In this case, **betweenness** centrality measures importance: `$$C_B(i) = \sum_{s \neq i, t \neq i} n_i(s,t)$$` Where `\(n_i(s,t)\)` is the number of shortest paths from `\(s\)` to `\(t\)` that pass through `\(i\)`. Example: `\(C_B(b) = 16\)` --- # Closeness Centrality <div style="float:right"> <img src="undirNetworkBtw.png" alt="Network betweenness example." width=400px/> </div> Sometimes the most important people in a group are the ones that can reach everyone with the least effort. In these cases, **closeness** centrality measures importance as: `$$C_C(i) = \frac{n-1}{\sum_{j\neq i} dist(i,j)}$$` Where `\(dist(i, j)\)` is the distance from `\(i\)` to `\(j\)` and `\(n\)` is the number of nodes in the network. Example: `\(C_C(d)=0.75\)` --- ## Neocortex Size as a limit to degree centrality  --- ## Dunbar's number in Online Social Networks .center[] --- # Dunbar's number on Twitter .center[.pull-left[] .pull-right[]] [Modeling Users' Activity on Twitter Networks: Validation of Dunbar's Number. Gonçalves et al (2011)](https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0022656) [Testing Propositions Derived from Twitter Studies: Generalization and Replication in Computational Social Science. Liang & Fu (2015)](https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0134270) --- # Beyond degree: layers .pull-left[] .pull-right[ - Strong ties have high value and high cost, weak ties have lower value and lower cost - Optimal points between costs and values explain different sizes of social circles (layers) - There is a relationship between tie strength and amount of ties, not just a number] Relationships and the social brain: Integrating psychological and evolutionary perspectives. A. Sutcliffe et al (2012) --- # A psychological explanation  --- # The death of social networks ## 1. Centrality and importance in social networks ## **2. The death of social networks** ## 3. Coreness centrality and social resilience --- # Why do online social networks collapse? > **Social Resilience:** The ability of a community to withstand external stresses, disturbances, and environmental changes .center[] [Friendster Was the Best Social Media Site, Ever. Yudhistira Agato, Vice (2017)](https://www.vice.com/en/article/ezjqzn/friendster-was-the-best-social-media-site-ever-1) --- # The rise and fall of Friendster **Friendster** went from 80 Million active users to disappear completely.  --- # The rise and fall of MySpace **MySpace** went from being valued more than 12 Billion USD in 2008 to be bought by [Justin Timberlake for 35 Million USD](https://www.theguardian.com/technology/2011/jun/30/myspace-internet).  --- # The rise and fall of Orkut **Orkut** was the first attempt of Google to launch an online social network. It was very popular in some countries but lost users to Facebook and it was eventually taken offline.  --- # Coreness centrality and social resilience ## 1. Centrality and importance in social networks ## 2. The death of social networks ## **3. Coreness centrality and social resilience** --- # Modelling social resilience online Social resilience can be modelled as a process of how users stay active or inactive in a social networking site. If we consider social network users as rational, they will respond to incentives to stay active or to abandon social networks depending on **benefits and costs**. **Benefits** can be quantified through the content users receive from their friends (shares, comments) and through the attention and support given by their friends (likes, votes). A simple way to model monotonic benefits is proportionally to the active friends of a user `\(k_u\)`: `$$benefit_u = b * k_u$$` --- # Costs of using an online social network <div style="float:right"> <img src="Figures/user3.jpg" alt="table flip." width=300pt/> </div> **Costs:** Using social network is not only benefits, there are also costs associated with being active. -- For example: - Time spent to learn to use the interface of the platform - Risks of disclosing personal information - Opportunity costs: you could be doing something else - Economic costs, for example membership fees. A common assumption about costs is that they are relatively similar for all users, thus modeling them as a constant `\(c\)`. Then, a user will become inactive when the total benefits are below the cost: $$ b *k_u < c $$ --- .center[] --- .center[] --- .center[] --- # Iterative removal by degree .center[] --- # The k-core decomposition The graph remaining after the cascade above is what is called a k-core > **k-core**: A k-core of a graph `\(G\)` is a maximal connected subgraph of `\(G\)` in which all vertices have degree at least k. For any network, you can calculate its k-core decomposition as follows: - Start with `\(k_s=1\)` - Remove all nodes with degree less than or equal to `\(k_s\)` and their links - Repeat until all nodes have degree larger than `\(k_s\)` - Increase `\(k_s\)` by one and repeat until no nodes are left The nodes and the edges removed for certain of `\(k_s=k\)` is called the **k-shell**. A **k-core** is the set of all k-shells with `\(k_s \geq k\)`. --- # Coreness centrality .center[] The k-shell number of a node is also called **coreness centrality**. Figure from [Kitsak et al. Identification of influential spreaders in complex networks. Nature Physics (2010)](https://www.nature.com/articles/nphys1746) --- # Coreness and social resilience The cost to benefit ratio `\(c/b\)` defines a critical value of the degree `\(K\)`, below which users with degree `\(k_u<K\)` will leave the social network. The remaining active social network is the k-core corresponding to `\(K\)`. The **cumulative density function** of coreness values in the network serves as a **resilience function**: .center[] --- # Backtesting with Friendster's collapse .center[] Constantly decreasing `\(k_s\)` in simple k-core model. Inset: fraction of nodes with coreness below the median over the lifetime of Friendster. --- # Predicting Facebook's collapse .pull-left[] .pull-right[ - Cannarella and Spechler, 2014 - Epidemics model applied to the decay of online social networks - Google trends to measure the number of active Facebook users - Extrapolation predicted that Facebook would lose 80% of its users by 2017 ] [Epidemiological modeling of online social network dynamics. John Cannarella, Joshua A. Spechler. Arxiv preprint (2014)](https://arxiv.org/pdf/1401.4208v1.pdf) --- # Stretching the Google trends method Data scientists at Facebook [replied to the Arxiv paper](https://www.facebook.com/notes/mike-develin/debunking-princeton/10151947421191849/) showing the problem with measuring social network use levels using Google Trends data. Applying the same methodology, Facebook researchers reached the conclusion that Princeton would lose 80% of its students by 2021:  --- # Stretching the Google trends method You can even apply it to air and come to the conclusion that the atmosphere will run out of air by 2060:  --- # Google trends for Facebook The Facebook examples show that decrease in search volume is a decrease in information searching about the social network, not a decrease in access and use.  --- # Google trends for Twitter Twitter is not living a second growth, in fact it's growth has been rather slow to stagnant for a few years, even though it appears it is gaining users after Trump's permanent suspension.  --- # Temporal validity issues </br> A more accurate way to measure activity in a social network is Bruno Ribeiro's [approach using Alexa data](https://dl.acm.org/doi/abs/10.1145/2566486.2567984), but Alexa focuses on website visits without considering access through mobile apps. </br> Measurement is always an important issue in Computational Social Systems, and just because a paper used a measurement method few years ago, it does not mean it is valid today. </br> > **Take home message:** Your measures based on today's digital traces might not work on tomorrow's --- # Summary - Measuring importance as centrality in social networks - Degree: when having lots of links makes you important - Betweenness: when being in shorter paths makes you important - Closeness: When having short distances to the rest makes you important - Social resilience as networked decisions - Modeling human decisions rather than disease spreading - A decision of a user leaving affects the situation of other users - This can be mapped to network metrics like coreness centrality - Empirical analysis of online social resilience - Using trends as activity and sometimes social network data - Historical analysis of the Friendster collapse - Limits of Google trends: the Facebook case --- # Please evaluate the lecture .center[]
